Specifications

1:1:Winch electric 12V 9500lbs
2:Single line rated pull 9500lb(4310kg)
3:Motor 5.5hp/4.1kw,Series Wound

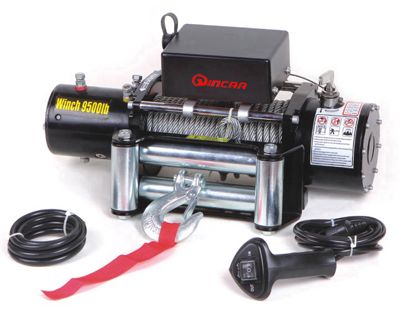

12V 9500lbs ELECTRIC WIRELESS RECOVERY WINCH electric 9500lbs

Specification:

1.Performance 12VDC

2.Single line rated pull 9500lb(4310kg)

3.Motor 5.5hp/4.1kw,Series Wound

4.Control Remote switch,12ft(3.7m)lead

5.Gear train 3 Stage Planetary

6.Gear reduction ratio 265.2:1

7.Clutch Sliding Ring Gear

8.Braking Action Automatic In-The-Drum

9.Drum size Diameter2.5"(63.5mm) Length 8.8"(224mm)

10.Cable 94ft of 21/64" diameter(28m of 8.3mm diameter)

11.Fairlead 4-Way Roller Fairlead

12.Remote Control Included

13.Battery Recommended:650CCA minimum for winching

14.Battery Leads 2 gauge,72"(1.83m)

15.Finish Black/Dark Grey

16.Weight N.W.84lbs(38kg) G.W. 92lbs((42kg)

17.Overall dimentions (LxWxH)21.3"x6.3"x8.6"(562x160x218mm)

18.Mounting Bolt Pattern 10.00±0.015"x4.50±0.010"(254x114.3mm)

Packing Details:

Meas: 552 X 160 X 218mm/1PC

G.W/N.W:38/42KGS

Remarks:

1: Terms of payment: T/T; L/C; WESTERN UNION.

50% deposit, 50% balance before shipment or scan of the BL. (If small order, should ask 100% advanced).(also it can be discussed)

2: Date of shipment: within 15 to 25 days after received the deposit. (The details should depend on the qty and the production line).

3: Unit price: It could be discussed depend on the qty.

4: OEM: We could offer OEM service.

5: Warranty: Normally one year warranty.
