Specifications

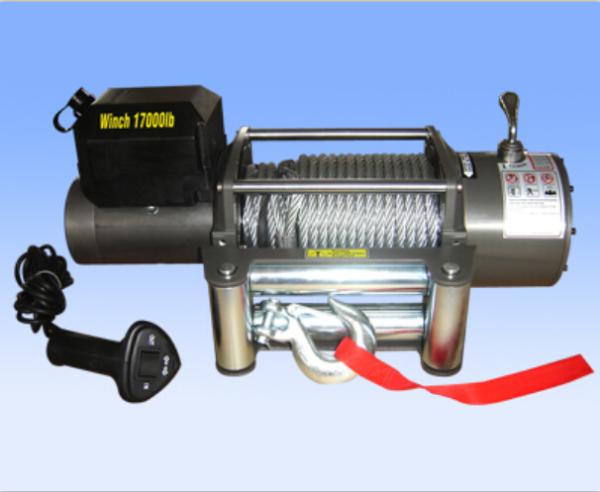

17000lbs winch electric made in DC 12V and 24V
1:Performance 12VDC
2:Single line rated pull 17000lb(7692kg)
3:Motor 6.0hp/4

17000lbs winch electric made in DC 12V and 24V

Specification:

1.Performance 12VDC

2.Single line rated pull 17000lb(7692kg)

3.Motor 6.0hp/4.5kw series-wound

4.Gear train 3 Stage Planetary

5.Gear ratio 358.4:1

6.Clutch Sliding Ring Gear

7.Brake Automatic in-the-drum

8.Drum size 3.4"(89mm) diameter X 8.8"(223mm) length

9.Wire rope 12mm diameter X 28m length

10.Fairlead 4-way roller fairlead

11.Gross weight 54kg(118.8lb)

12.Net weight 50kg(110lb)

13.Overall dimensions (LxWxH) (555 x 196 x 249mm)

14.Mounting bolt pattern (254mm x 114mm)

Packing Details:

Meas: 555 x 196 x 249mm

G.W/N.W:50/54KGS

We are professional manufacturer and exporter specialized in Auto and Camping accessories.We integrating develoment and production and sales together.We have many years of history in 4x4 manufacturing and exporting field.

WINCAR Industtries was established in January of 2007,Located near Shanghai, we enjoy convenient water, land and air transportation.

We have around 200 square meter office in the downtown city and have around 3000 square meter factory in suburb of the city.

Our main clients come from America,Australia,Russian and European countries.We have sole distributors in Australia,Russian,South American for some of our products.Our main clients is distributing our products in the aftermarket.We welcome customer brand and design orders.We welcome OEM orders.We guarantee all customers's design and orders are confidentiality from us.We respect very much mutual benefit business relationship.

Our company always focused on research,development and innovation new products.Every year we have professional people travel around all over the world to visit and other our service worldwide clients.

WINCAR will initiate the second phase of our development strategy. Our company regards hight quality, reasonable prices, efficient production time and good after-sales service as our tenet.We hope to establish stable and long business with our current old clients.We hope to cooperate with more new customers for mutual development and benefits.

We welcome you to contact us.We promise all your inquiry or question will be replied in 24 hours except national holidays.
